Главная страницаDESOI AirPower M36
500-12-064_DESOI_AirPower M36.jpg
500-12-064_DESOI_AirPower M36.jpg 500-12-064_DESOI_AirPower M36_B1.jpg 500-12-064_DESOI_AirPower M36_B2.jpg

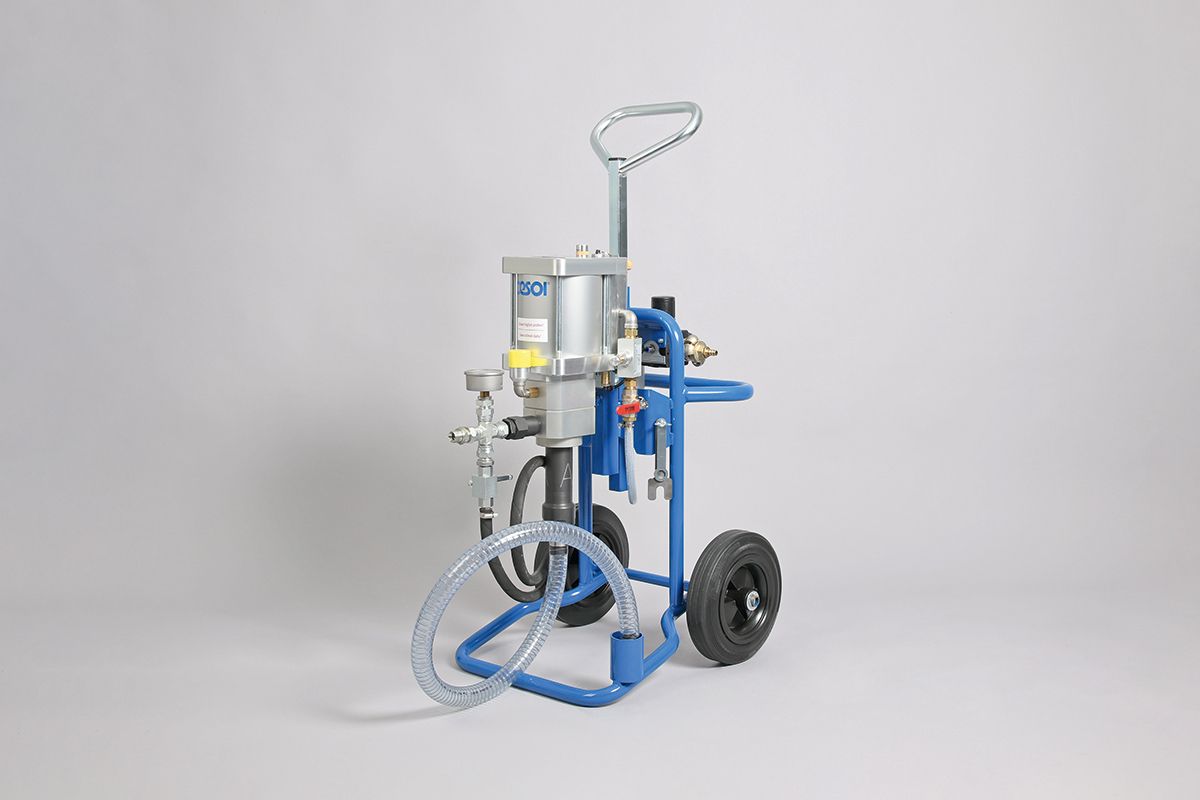

DESOI AirPower M36

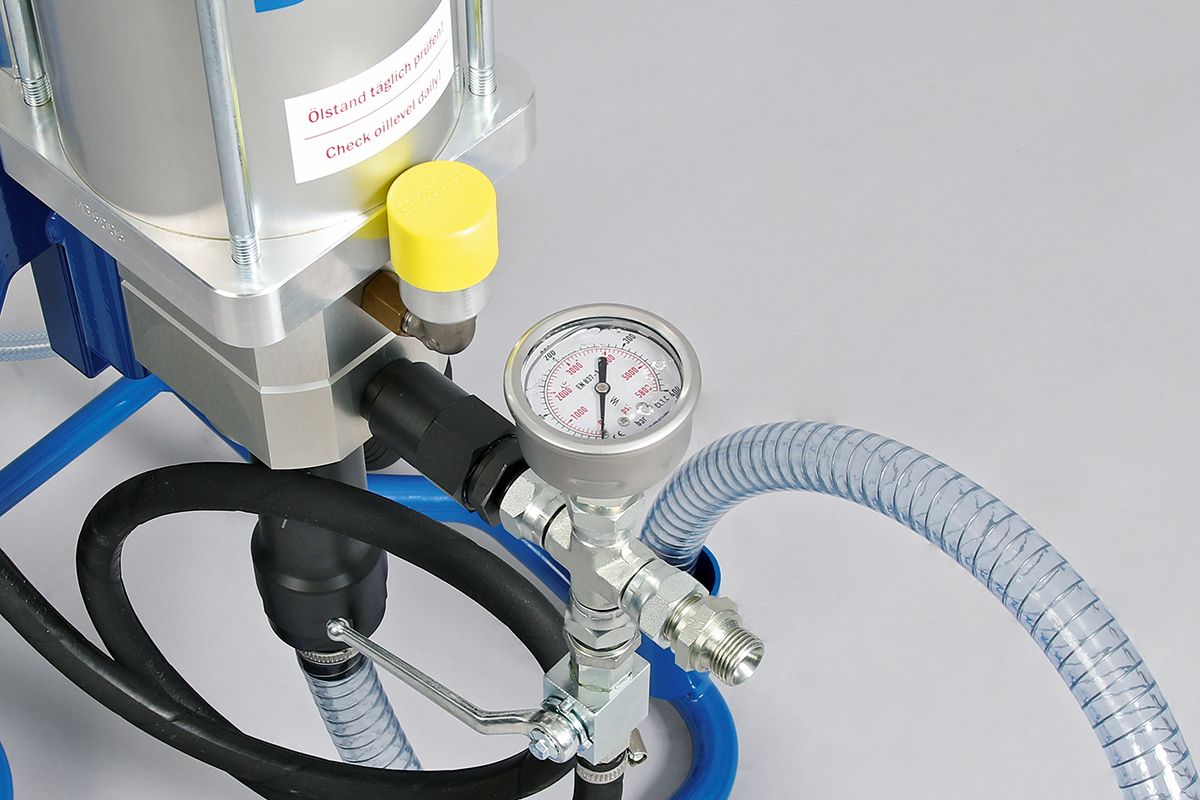

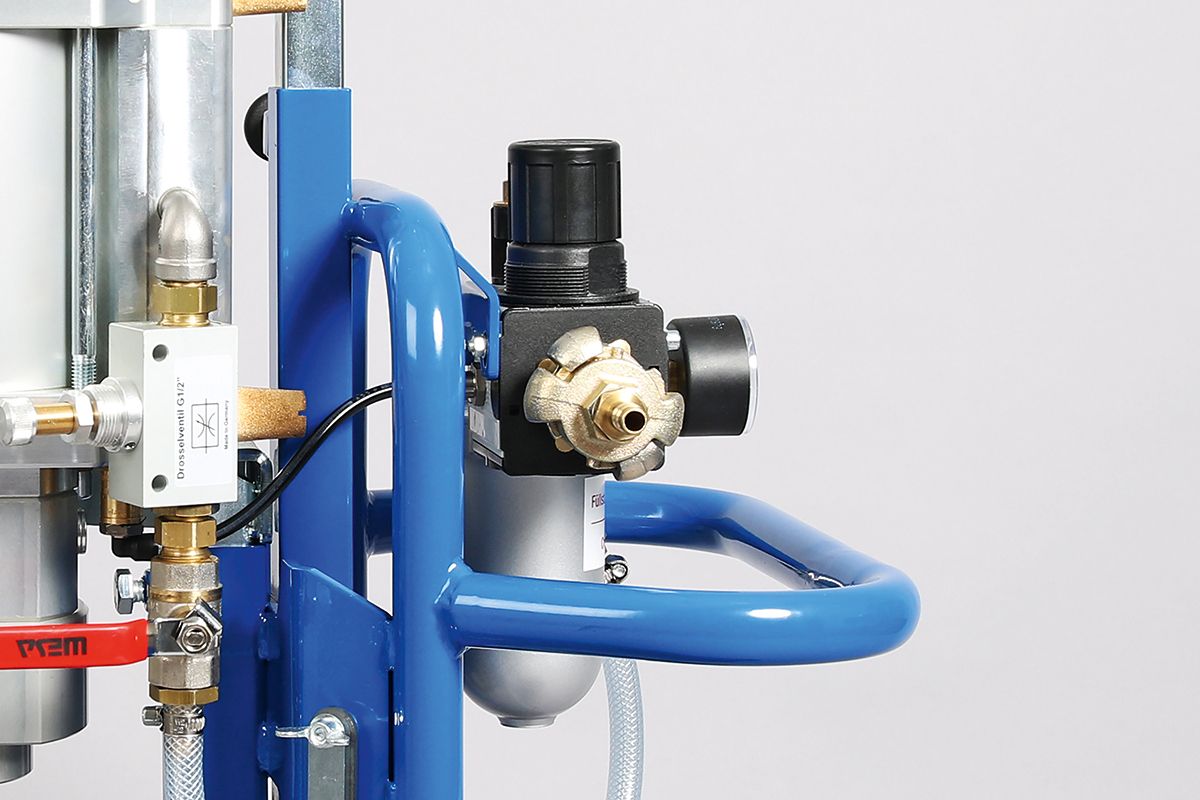

moving device, 1.2 m suction hose Ø 25 mm transparent with suction basket Ø 40 mm, manometer 0 - 400 bar, return hose Ø 13 mm black, material hose connection: G1/2"; anti freeze unit, reducing valve for regulating the delivery rate speed, air connection package: claw coupling 42 mm, air plug NW 7.2, incl. instruction manual
Преимущество/Заметка
  • Big material passages - for highly viscous material
  • A tensioning of the piston sealings is not necessary
  • Easy maintenance and repair
Исходный материал
  • epoxy resin
  • polyurethane
  • quick-foaming polyurethane
  • aqueous solution
Технические характеристики
Working pressure - infinitely variable 18 - 192 bar
Delivery rate 8.4 l/min
Air consumption 900 l/min
Air pressure max. 8 bar
Transmission ratio 1:24
Air consumption and delivery rate at 100 bar back pressure (injection pressure)
Air consumption 210 l/min Delivery rate 1.0 l/min
Air consumption 325 l/min Delivery rate 1.5 l/min
Air consumption 425 l/min Delivery rate 2.0 l/min
Air consumption 520 l/min Delivery rate 2.5 l/min
Air consumption 610 l/min Delivery rate 3.0 l/min
Weight 37.5 kg
L x W x H 64 x 48 x 84 cm
Описание продукта
The pneumatic reciprocating pump DESOI AirPower M36 combines high capacity with compact design. Due to the directly mounted seals on the piston, retensioning is not necessary. The result is a very maintenance-friendly machine including suitable accessories.

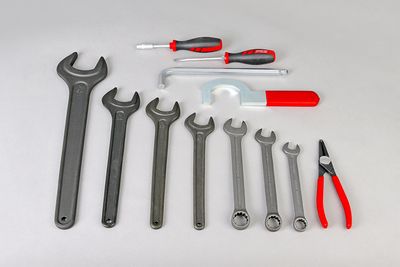

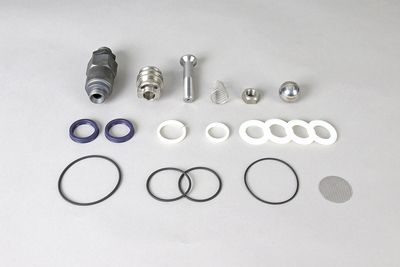

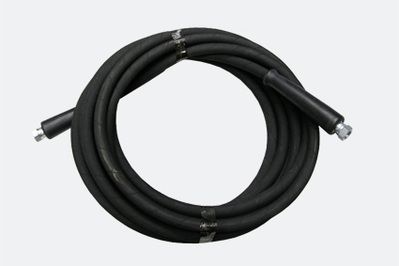

Аксессуары
